HouseWaves-Legacy15: Connect Your Speakers to Home Assistant

Name: HouseWaves-Legacy15: Connect Your Speakers to Home Assistant
Brand: HouseWaves
SKU: HWL15
Price: 59.00 USD
Availability: OutOfStock

$59.00 USD

Sale Sold out

HouseWaves-Legacy15

Connect your own speakers to Home Assistant in minutes.

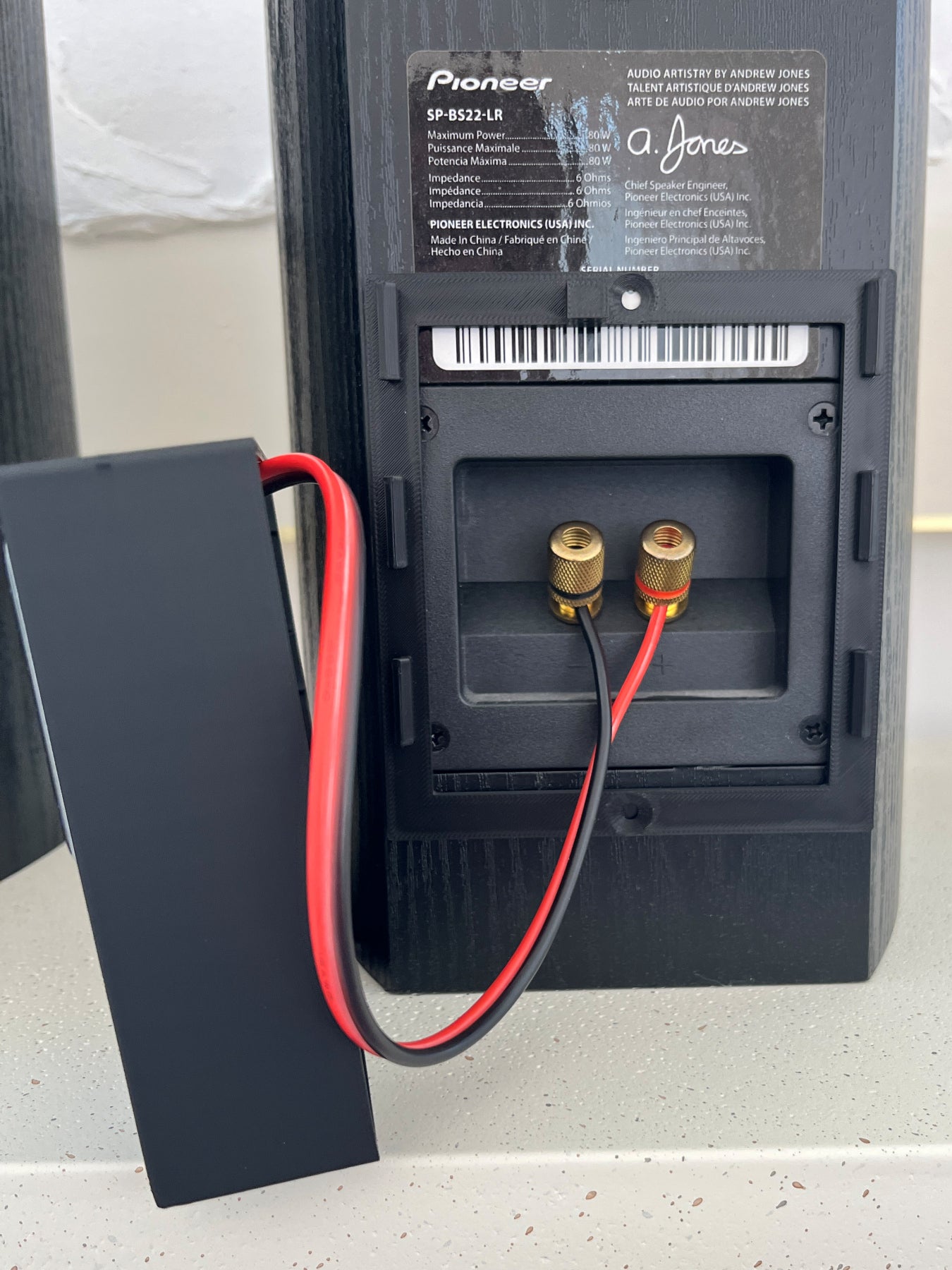

HouseWaves-Legacy connects directly to the wire terminals of any passive speaker. Stream multi-room audio and notifications from Home Assistant using speakers you already own. Mounts effortlessly — or rests — behind the speaker. No cloud. No code. No integration. Just connect the wires, plug in and connect your Wi-Fi. Mounting is optional.

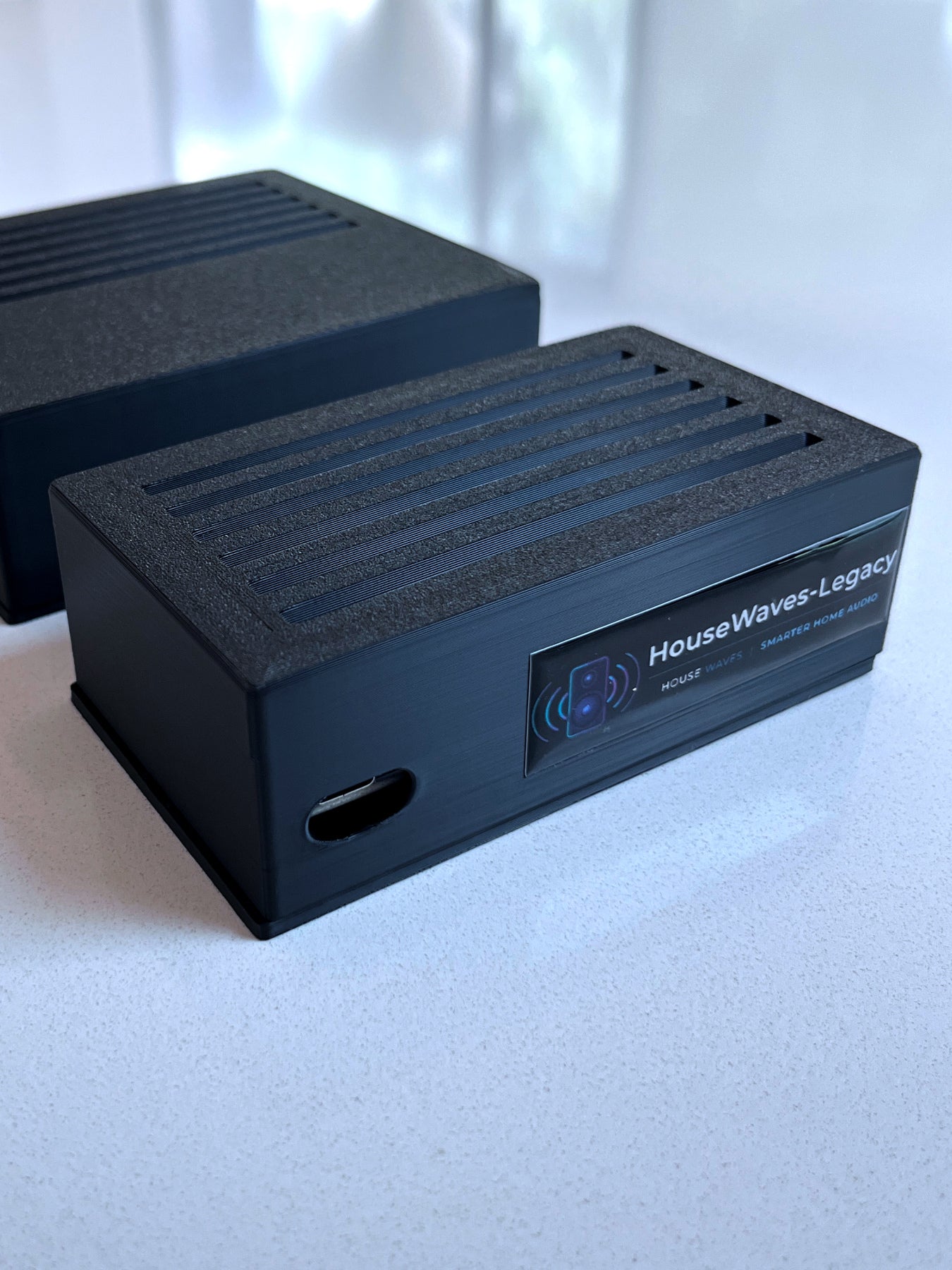

HouseWaves-Legacy15 is the small-format streaming amplifier.

Sized for smaller bookshelf-sized speakers rated 15–50W continuous power (30–100W peak). Loud enough for your office or bedroom. This case mounts over smaller terminal cups up to 42×84mm. Requires a 5V USB-C power adapter (not included).

─────────────────────────

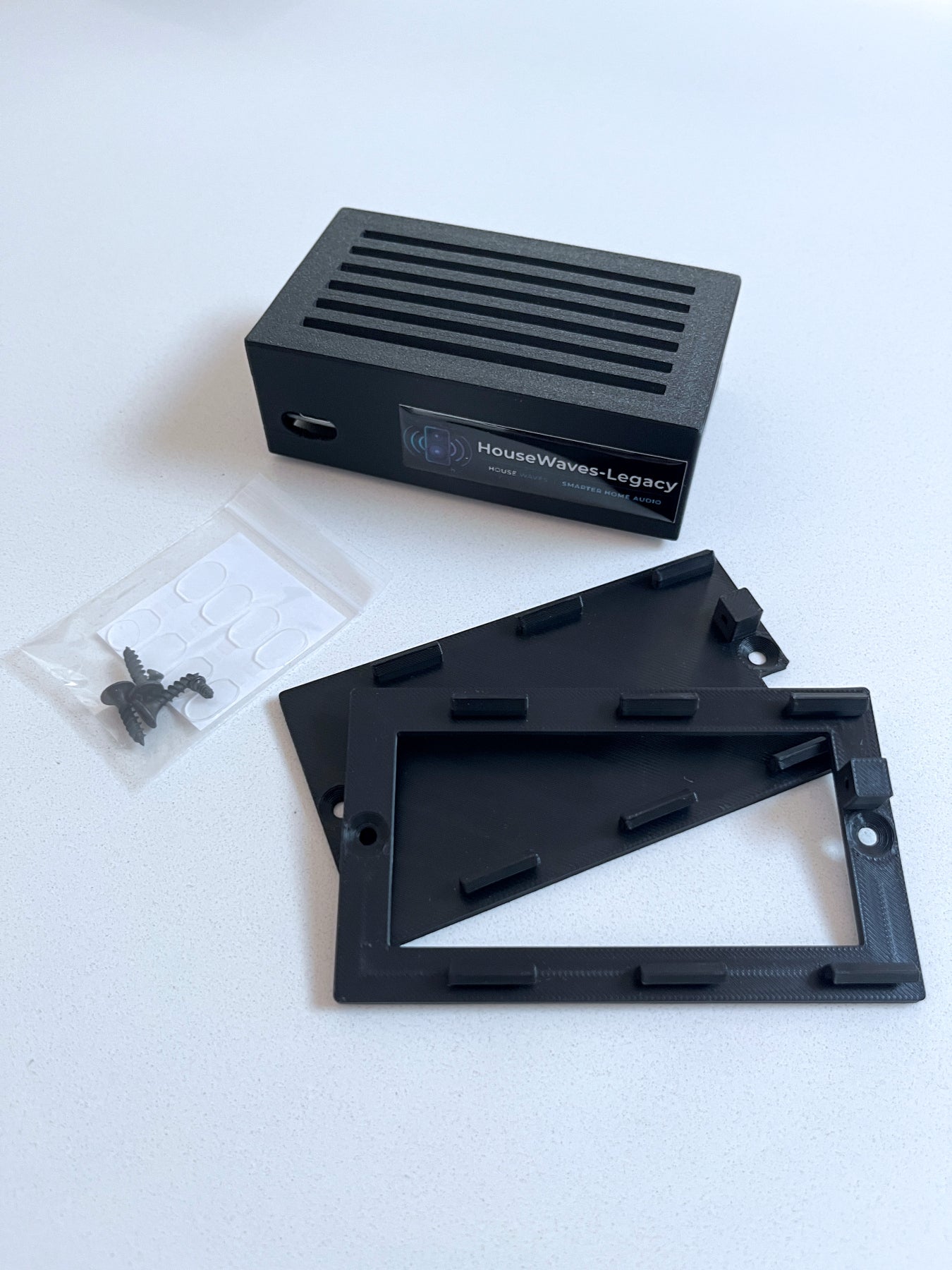

WHAT'S INCLUDED

✓ One HouseWaves-Legacy15 for a passive speaker
✓ Two backs (open for mounting and closed)
✓ Adhesive pads and screws for either mounting option.
✓ ESPHome/SendSpin firmware with OTA updating.

─────────────────────────

ALSO REQUIRED FOR USE. NOT INCLUDED

✓ Passive speaker (your own)
✓ USB-C 5V 2.5A Power Adapter
✓ Home Assistant & Music Assistant for streaming audio.
✓ TTS for streaming notifications.

─────────────────────────

TECHNICAL DETAILS

Speaker Rating	15–50W continuous power · 30–100W peak
Controller	ESP32-WROVER-N8R8
DAC	Stereo I2S (TAS5805M · PBTL)
DSP	Integrated
Amplifier	Class D · Parallel bridge-tied load
Output Power	15W @ 4Ω, 1% THD
Power Input	USB-C, 5V 3A (<1W when idle)
Wireless	2.4 GHz Wi-Fi 802.11 b/g/n · BLE
Installed Firmware	ESPHome with SendSpin
Compatible Firmware	Squeezelite, Snapcast, AirPlay2, etc.
Mounting	Adhesive tabs, screws or free-standing.
Terminal Cup Fit	Up to 42mm × 84mm
Dimensions	4.3″ × 2.5″ × 1.5″
